Float And Board Type Level Indicator

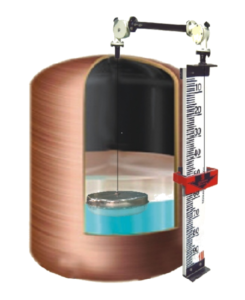

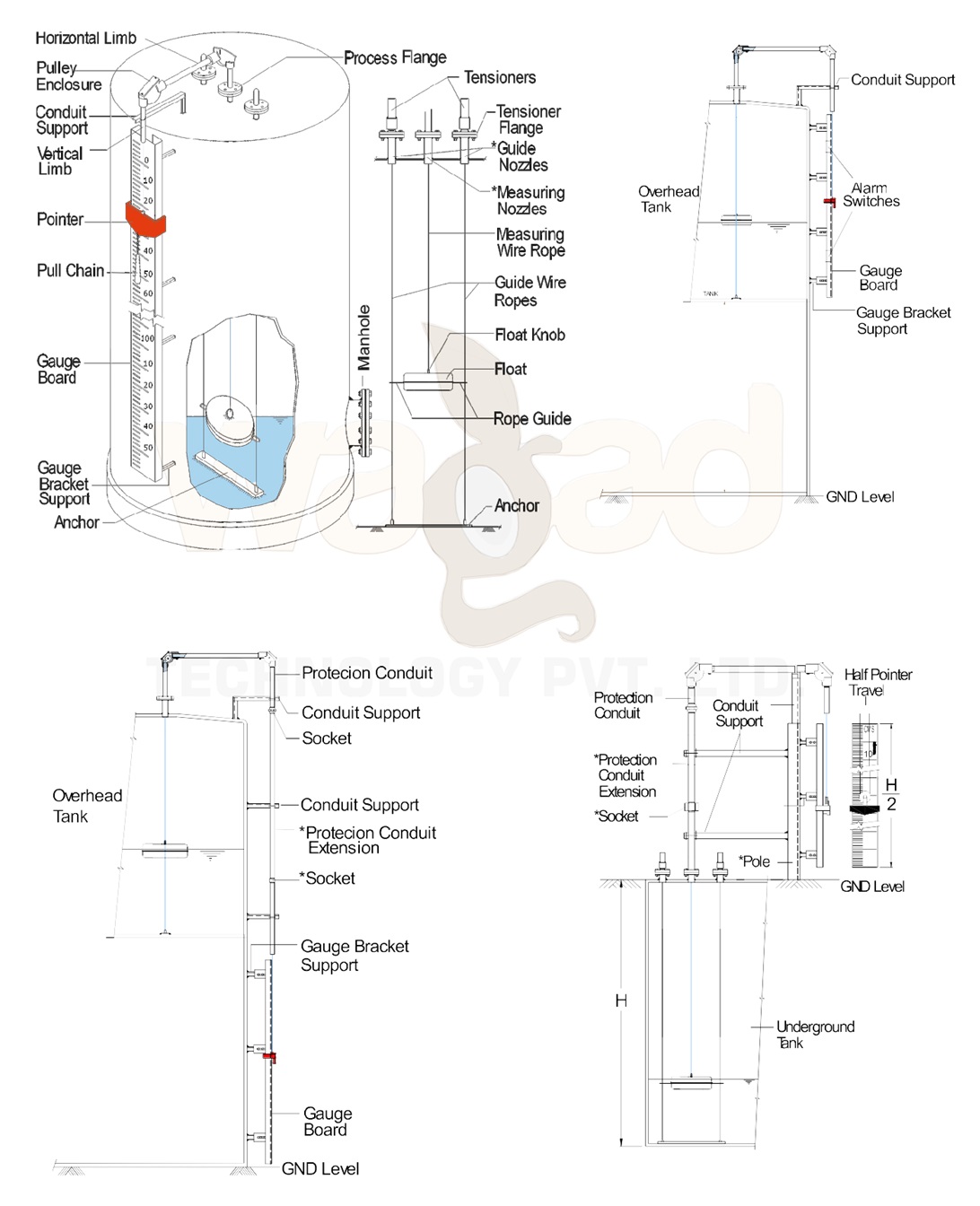

Wagad a totally new, reliable and accurate system for liquid level measurement in tall and overhead tanks. Highly efficient and rugged in construction, this instrument is very suitable for large storage tanks for Water, Fire Water, DM Water, Oil, LSHS, Diesel, Lube Oil, Vegetable Oils, Molasses, Silicates, Glucose, All Non-Hazard, Non-Pressurised tanks.As the liquid rises in the tank, the large float also goes up, in turn moving the pointer on the graduated scale. The float is connected to the pointer with the wire rope which glides over almost frictionless nylon rollers, thereby ensuring trouble free operation.
| Suitable For | |
| Tank height /Range | Upto 10 mtrs Without Wire Rope Guide Assembly |
| Above 10 mtrs With Wire Rope Guide Assembly | |
| Design Temperature | Up to 150°C |
| Design Pressure | Up to 1 Kg/cm |
| Connection | Flanged to ASA/BS/DIN/ Screwed BSP/NPT |
| Wetted Part Material | MS/CS/SS304/SS304L/SS316/SS316L(Float & Wire Rope) |

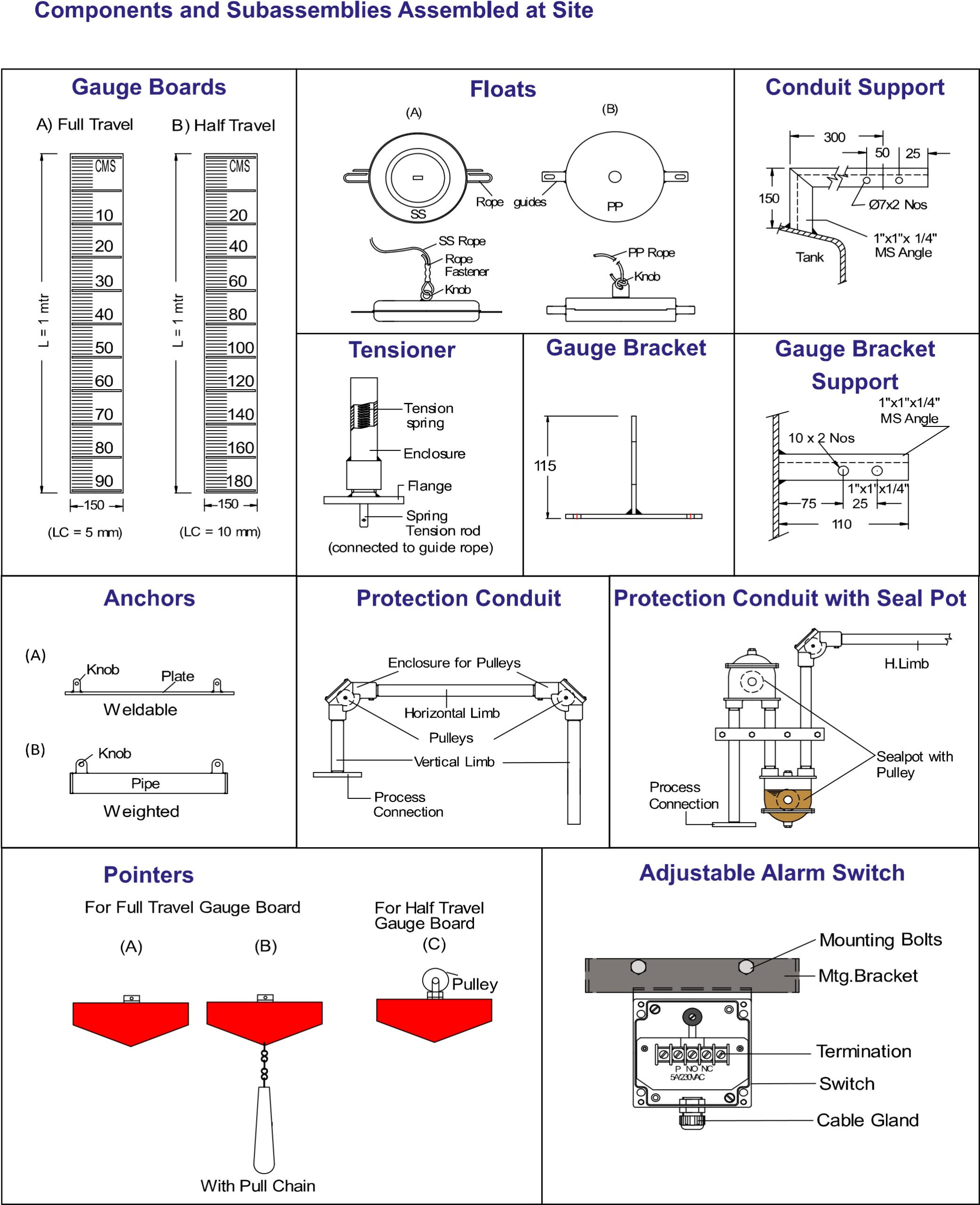

Specification
- Float Size : 280mm DIA.X80mm HT. Argon Welded
- Pulleys : 2 Nos. Specially Designed For Smooth Rotation
- Pulley Enclosure : Complete PP / Cast Aluminium / SS 304 / SS 316

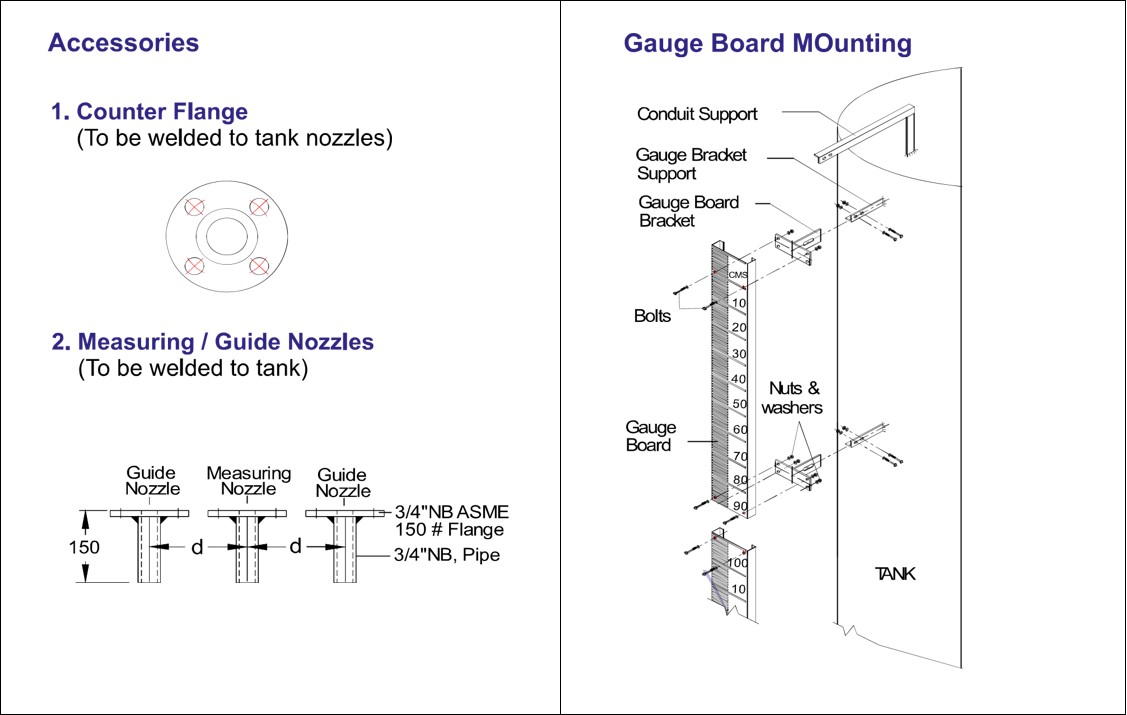

- Mounting : Top Of The Tank
- Connection : Flanged/Screwed
- Protection Pipe : MS/HDPE Lined MS/PTFE Lined MS
- Graduation : In mm (LC-5mm) X Numerical Red X Graduation Black
- Scale : Metallic Painted PVC Laminated Aluminium Painted PVC Laminated/SS 304/SS 316
- Scale Bracket : Cast Aluminium at Every one Scale Length
- Level Indicator : CS Painted With 6 Nos. PVC Rollers./SS 304/SS 316
- Wire Rope Dia : 1.6mm DIA. Multistrand/3mm DIA for PP
- Design Temperature : 60°C For PP/150°C For SS
- Design Pressure : 1 kg/cm²
- Float & Wire Rope : PP/HDPE/SS 304/SS 316
- Pulleys : PP/HDPE/PTFE/SS304/SS 304L/SS 316/SS 316L
